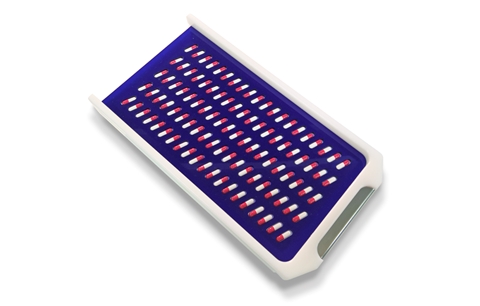

LOADER 200

INFORMATIONS

• Number of capsules : 200.

• Compatible with: Full Metal 200.​

• Fast capsule loading into the fillers

• Clean operation: no manual handling of the capsules

HOW TO USE

Video demonstration

1. Prepare your material: Capsule Loader, Capsule Filler, Capsules, Powder.
2. Pour capsules in the loader and shake it from side to side to fill all holes with an empty capsule.

3. Remove the excess of capsules.

4. Place the loader in the positioning slots. The loading is done in two steps: slide the loader either towards you or away from you.

5. Push the loader handle. The capsules should fall upright into the top plate.

6. If a capsule in blocked in the loader, push the handle and the lock button to keep the loader in “open” position. Then use a Feton Teflon stylus to move the capsule without risk of damaging the loader.

7. Repeat steps 2-3-4-5-6

8. Your capsule filler is now ready for use.

BENEFIT OF THIS LOADER200:

DIMENSIONS AND WEIGHT:
Dimensions:
Length: 301 mm
width: 160 mm
height: 59 mm

Weight:
1,0kg (size 000) to 1,5kg (size 4)

TIPS:
The Capsule Filler200 is available here.

The Full kit Capsule Filler200 is available here.
Find our accessories.

TROUBLESHOOTING AND CLEANING:

If your lock button is blocked in the locked position
Turn your loader upside-down and use an objet to push it back into position through the hole.

Cleaning
It is important to clean the parts in contact with the capsules or the powder thoroughly between each use to avoid contamination. Cleaning can be done by hand, in a dishwasher or in an autoclave. If done by hand, use warm water and soap.

Use a maximum temperature of 40°C / 104°F for all the plastic parts.

If you have difficulties washing the inside of holes on the plates, use the Feton-cleaning brush.

──────────────────────────────────────────

ORDER NOW :

contact@feton.com order via our contact form.

With a dynamic R&D department, we are ready to fulfill your special requests.
